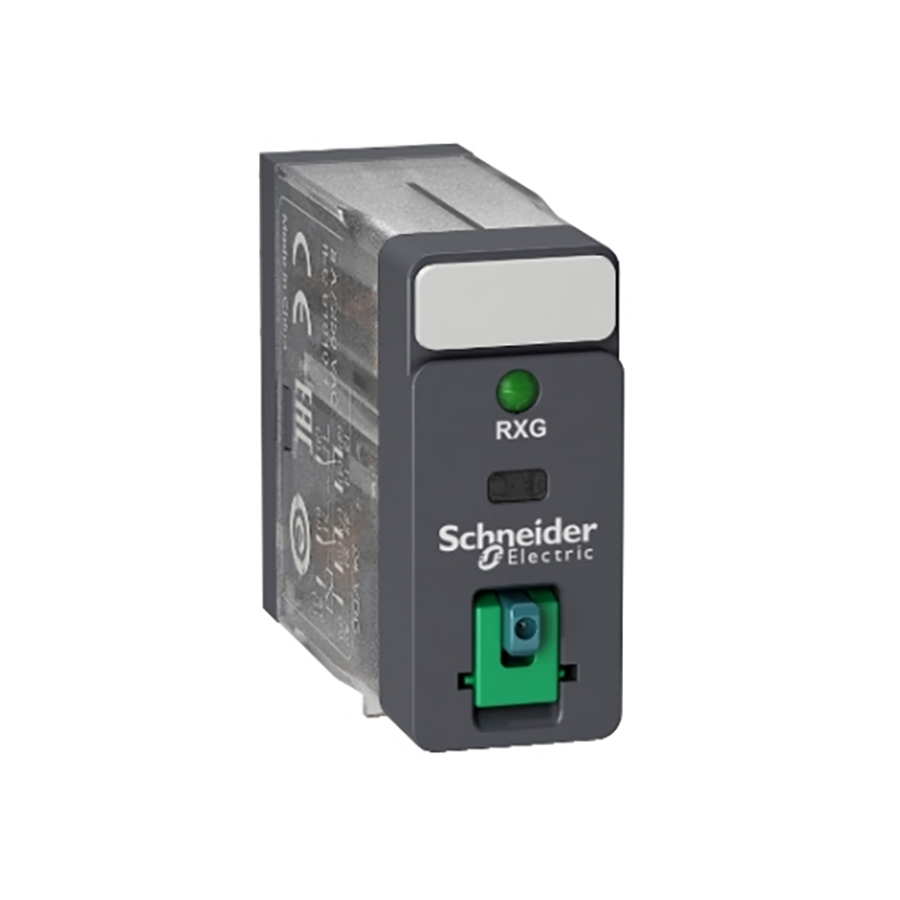

RXG22FD
Manufacturer:
Schneider Electric
Mfr.Part #:
RXG22FD
Datasheet:
Description:
Power Relays Socketable 4.8 mA 110 V General Purpose
| Parameter | Value |
|---|---|
| Length | 29 mm |
| Width | 13 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Height | 36.5 mm |
| Packaging | Box |
| RoHS | Compliant |
| Features | Lighted Indicator, Test Button |
| Contact Material(Contact Finish) | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Coil Voltage (DC) | 110 V |
| Coil Current | 4.8 mA |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Contact Current Rating | 5 A |
| Termination Style | Plug In |
| Switching Voltage | 250 VAC, 30 VDC |
| Must Release Voltage | 11 V |
Stock: 5
Distributors
pcbx
pcbxUnit Price$4.28744
Ext.Price$4.28744
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.28744 | $4.28744 |
